| Model |

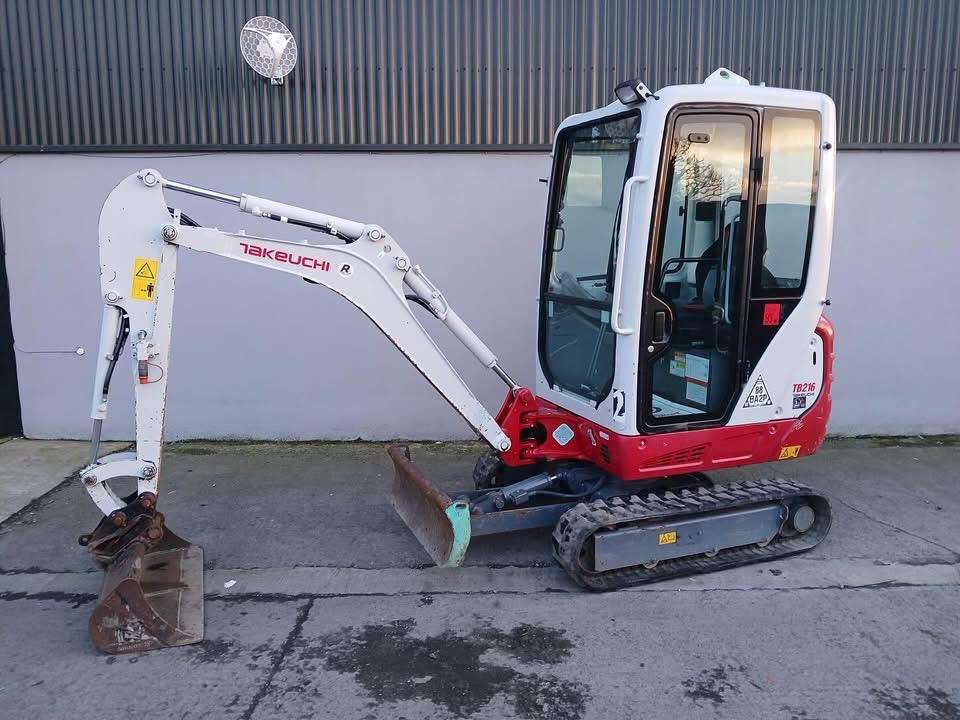

Takeuchi TB216 Mini Excavator |
| Engine Manufacturer |
Yanmar |
| Engine Model |
3TNV70 |
| Engine Type |
3-cylinder, diesel, naturally aspirated |
| Engine Power |
13.5 hp (10.1 kW) at 2,400 rpm |
| Engine Displacement |
1.1 L (1,098 cc) |
| Fuel Type |
Diesel |
| Fuel Capacity |
6.3 U.S. gallons (24 L) |
| Hydraulic Flow |
10.6 gpm (40 L/min) |
| Operating Weight |
3,920 lbs (1,780 kg) |
| Digging Depth |
7.5 ft (2.28 m) |
| Maximum Reach |
12.0 ft (3.65 m) |
| Bucket Capacity |
0.03 – 0.07 m³ (0.04 – 0.09 yd³) |
| Max Digging Force (Arm) |
4,500 lbs (20 kN) |
| Max Digging Force (Bucket) |
5,600 lbs (24.9 kN) |
| Boom Swing |
55° left / 45° right |
| Tail Swing Radius |
3.6 ft (1.09 m) |
| Track Width |
5.5 in (140 mm) |
| Track Length on Ground |
5.0 ft (1.52 m) |
| Track Type |
Rubber tracks |
| Overall Length |
11.7 ft (3.57 m) |
| Overall Width |
4.5 ft (1.37 m) |
| Overall Height |
7.2 ft (2.19 m) |
| Swing Speed |
9.0 rpm |
| Travel Speed |
2.8 mph (4.5 km/h) (high) / 1.7 mph (2.7 km/h) (low) |
| Arm Length |
5.5 ft (1.68 m) |
