| Specification | Details |
|---|---|
| Model | Hidromek HMK 145 LCSR |
| Year of Manufacture | 2024 |
| Engine Manufacturer | Isuzu |
| Engine Model | AR-4JJ1X |
| Number of Cylinders | 4 |
| Bore x Stroke | 95.4 x 104.9 mm |
| Displacement | 2,999 cc |
| Maximum Power | 105 HP (78.3 kW) at 2,000 rpm |
| Maximum Torque | 375 Nm at 1,800 rpm |
| Hydraulic System Type | Double variable displacement axial piston pumps |
| Maximum Flow | 2 x 129 L/min |
| Pilot Pump | Gear, 20 L/min |
| Relief Valve Pressures: | Attachment: 350 kgf/cm²<br>Power Boost: 372 kgf/cm²<br>Travel: 350 kgf/cm²<br>Swing: 300 kgf/cm² |
| Swing Type | Axial piston type integrated with shock absorber valves |
| Swing Speed | 11.3 rpm |
| Travel Speeds: | High: 5.7 km/h<br>Low: 3.4 km/h |
| Standard Bucket Capacity | 0.6 m³ |
| Maximum Digging Depth | 5.36 meters |
| Maximum Digging Reach at Ground Level | 8.04 meters |
| Maximum Digging Reach | 8.20 meters |
| Maximum Digging Height | 9.26 meters |
| Bucket Digging Force (ISO) | 10,000 kgf |
| Arm Breakout Force (ISO) | 7,300 kgf |
| Boom Length | 4.8 meters |
| Arm Length Options: | 2.3 m / 2.6 m / 2.9 m |
| Engine Oil Capacity | 16 liters |
| Radiator Capacity | 20 liters |
| Fuel Tank Capacity | 235 liters |
| Hydraulic Tank Capacity | 115 liters |
| Operating Weight (Mono Boom) | 16,700 kg |
| Operating Weight (Two-Piece Boom) | 17,150 kg |
- Hover to zoom
- Hover to zoom

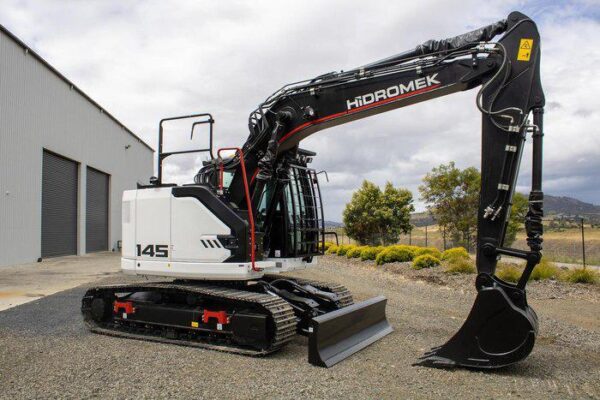

NEW Hidromek HMK145LCSR
Specifications
Width
Add Your Heading Text Here
Height
Add Your Heading Text Here
Product Length
Add Your Heading Text Here
Lubrication
Add Your Heading Text Here
Product Dimensions
Add Your Heading Text Here
Product Features
Add Your Heading Text Here
Machine Weight
Add Your Heading Text Here
Density
Add Your Heading Text Here
Counter
Add Your Heading Text Here
Clutch
Add Your Heading Text Here
Binding Type
Add Your Heading Text Here
Wheel Support
Add Your Heading Text Here
Product Model
Add Your Heading Text Here
Number Of Rollers
Add Your Heading Text Here
Bale Weight
Add Your Heading Text Here
Motor Compatibility
Add Your Heading Text Here
Bale Size
Add Your Heading Text Here
Bale Election
Add Your Heading Text Here
Pto Input Speed
Add Your Heading Text Here
Pick Up Width
Add Your Heading Text Here
Hitch Category
Add Your Heading Text Here
Hp Capacity
Add Your Heading Text Here
Hitch Type
Add Your Heading Text Here
Tine Rows Number
Add Your Heading Text Here
Max Working Depth
Add Your Heading Text Here
Description
| Specification | Details |
|---|---|
| Model | Hidromek HMK 145 LCSR |
| Year of Manufacture | 2024 |
| Engine Manufacturer | Isuzu |
| Engine Model | AR-4JJ1X |
| Number of Cylinders | 4 |
| Bore x Stroke | 95.4 x 104.9 mm |
| Displacement | 2,999 cc |
| Maximum Power | 105 HP (78.3 kW) at 2,000 rpm |
| Maximum Torque | 375 Nm at 1,800 rpm |
| Hydraulic System Type | Double variable displacement axial piston pumps |
| Maximum Flow | 2 x 129 L/min |
| Pilot Pump | Gear, 20 L/min |
| Relief Valve Pressures: | Attachment: 350 kgf/cm²<br>Power Boost: 372 kgf/cm²<br>Travel: 350 kgf/cm²<br>Swing: 300 kgf/cm² |
| Swing Type | Axial piston type integrated with shock absorber valves |
| Swing Speed | 11.3 rpm |
| Travel Speeds: | High: 5.7 km/h<br>Low: 3.4 km/h |
| Standard Bucket Capacity | 0.6 m³ |
| Maximum Digging Depth | 5.36 meters |
| Maximum Digging Reach at Ground Level | 8.04 meters |
| Maximum Digging Reach | 8.20 meters |
| Maximum Digging Height | 9.26 meters |
| Bucket Digging Force (ISO) | 10,000 kgf |
| Arm Breakout Force (ISO) | 7,300 kgf |
| Boom Length | 4.8 meters |
| Arm Length Options: | 2.3 m / 2.6 m / 2.9 m |
| Engine Oil Capacity | 16 liters |
| Radiator Capacity | 20 liters |
| Fuel Tank Capacity | 235 liters |
| Hydraulic Tank Capacity | 115 liters |
| Operating Weight (Mono Boom) | 16,700 kg |
| Operating Weight (Two-Piece Boom) | 17,150 kg |
Similar Products
Related products
-

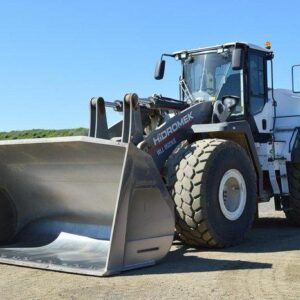

Hidromek HMK640WL Wheel Loader
HIDROMEK -

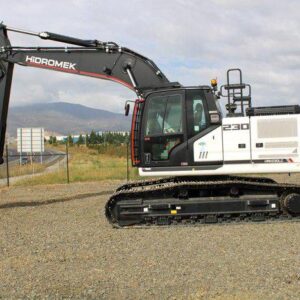

Hidromek HMK230LC
